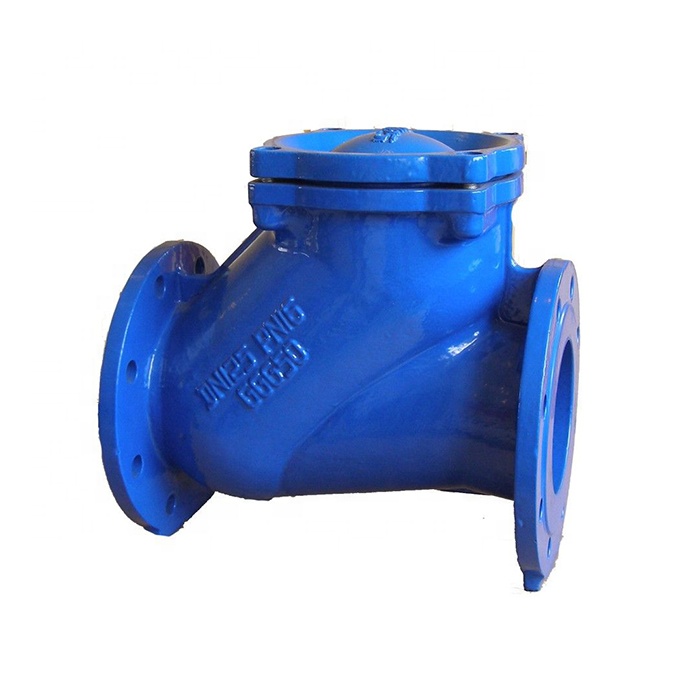

DIN BALL VALVE

DIN BALL VALVE

Technical specification

Structural Formation: BB-BG-OS & Y

Driving Manner: Hand-Operated

Driving Manner: Electric-Actuated

Design Standard: DIN3356

Face to Face: DIN3202

Flange Ends: DIN2543-2545

Test & Inspection: DIN3230

Notes: The size of serial, valve connecting flange can be design according to customers' requirement

                     Products performance specification

Nominal Pressure

(MPa)

Shell Test (MPa)

Sealing Test (MPa)

Suitable Temp(℃)

Suitable Medium

1.6

2.4

1.76





-196~150℃





Water Oil & Gas

2.5

3.75

2.75

4.0

6.0

4.4

6.4

9.6

7.04

10.0

10.5

11
