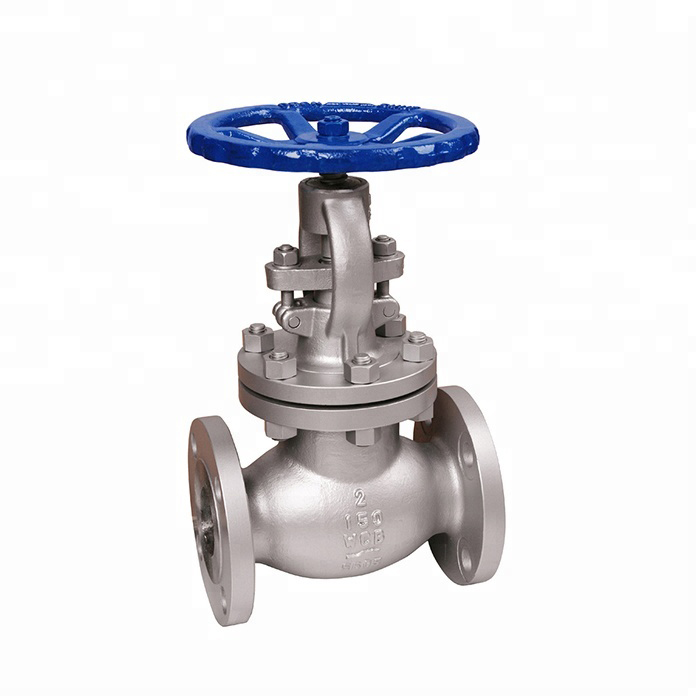

JIS GLOBE VALVE

JIS GLOBE VALVE

Features

Our company JIS globe valve usually be reliably used in steam, air, coat gas, oil or oil gas etc high or low-pressure condition. Middle or low-pressure valve

normal valve normal adopt taper disc seating structure, but the large diameter and high pressure valve adopt sideway disc sealing structure, the medium flow

from high to low position, it use medium self pressure seal, so the sealing is very reliable and the operated torque is more light. According to condition, the

valve can be apply more kinds of material and connection type between bonnet and body and can be reach to more requirements of user .


Construction as follows

1. Full Bore/Reduce bore

2. Outside screw and Yoke, rising stem

3. Integral seat and Detachable Back-seat

4. Bolted Bonnet/Pressure seal Bonnet4

5. Tow piece self-aligning packing gland


                                                            Standard



 Design And Manufacture



Face To Face



Flange Dimension



Pressure-

Temperture rating



Inspection And Test



JIS B2071 B2081



JIS B2002



JIS B2212 B2214



JIS B2071 B2081



JIS B2003

                                                        Capability criterion

Body materialSPCH2-11SPCH2-32SCS13ASCS19ASCS14ASCS16ASCPL1
Suitable Temperature425540275200275200-45~150
Appropriate MediumWater Steam Oil GoodsNitric AcidAcetic AcidLiquid Ammonia
